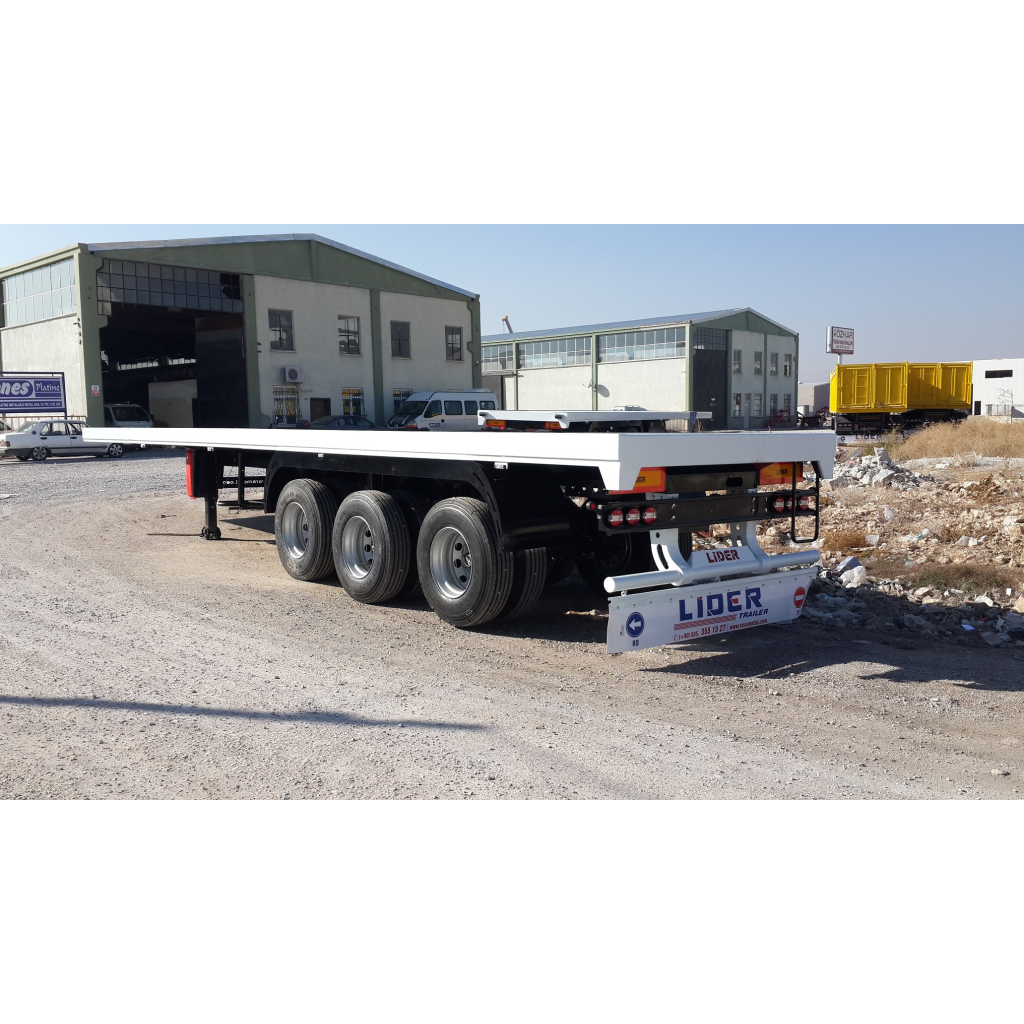

Container carrier Flatbed trailers
TEKNİK BİLGİLER
Countiner carrier Flatbed trailers is used for transport all types of countiners . Lider Trailere is ready for Flatbed semi-trailer is designed for the transportation of products such as 20 Ft, 30 Ft, 40ft, 45 ft, container, loaded flat reck, open top container. Also known as container carrier trailers .
Also we manufacture this countiner carrier trailrs with all capacitys , 20 ton , 30 ton , 40 ton , 50 ton as per to customers request .
Also we have a different specifications about Flatbed semi trailers and Container carrier flatbed trailers , 20 up 80 ton .
Sometimes the Flatbed and Countiner carrier flatbed trailers manfactured as per to customers request or to countiner sizes .
So you can give us your request about Flatbed semi trailers or continer carrier flatbed trailers and we will manufacture as per to your request with high quality and best price .
The specifications of countiner carries flatbed trailoeres in attached .
- Chassis:
section in resistance calculation excessive loading has been
considered with robotic welding machine.
Axles: Produced as 3*12 tons capacity ,automatic braje adjustment lever
and compliance with european standards.
King Pin: Produced with wrought iron (42 cr Mo4). That’s high resistance to
tension and breaking off compliance with 3, 5’’ or 2’’ SAE/DIN norms
and provides easy replacement posibility with screw connections.
Front Axle Lift : Controlled from axle lifting system into the cabin.
Air Suspension: Consist of height adjusting system with lowering and raising
parobolik Z spring and shock absorber elements limining the
accesive axle movementaxle movement.
Brake System: Designed according into the european standards Wabco products
are used on equipped with automatic brake adjustment brake
chambers (30 cylinder)
Brake linings (420x200 mm) axle brakes ABS system.There are two
pieces of replecable protective brake sockets.
Tyre: 6 Units tubeless tyre in 385 / 65 R 22, 5 sizes Goodyear or Pirelli
Brand.
Floor Covering:In the shape of 3*4 mm diamond type wooden gril.
Electric System: 24 Volt electric systems in accordance to EU regulations.
Side Walls and Floor: Floor is checkered steel plate or hardened wood. Side walls
aluminum or steel walls. Optionally can be design for pipe trasnport.
Paint: Trailer clean before painting and repair with paste for smooth face.
Then prime paint and double last paint regarding customer reguest in
Paint Oven.
Standart accosseries: 1-)Bumper
2-)Single basket spare Wheel carrier producted with aliminium panel
3-)1 piece of fire extungisher cabinet
4-)1 piece of tool cabinet
5-)Stanless steel water tank
6-)1 piece wege
7-)Bike fences
8-)Mudgard
9-)4 Pieces Ro-Ro rings.
